SPECIFICATIONS (USED)

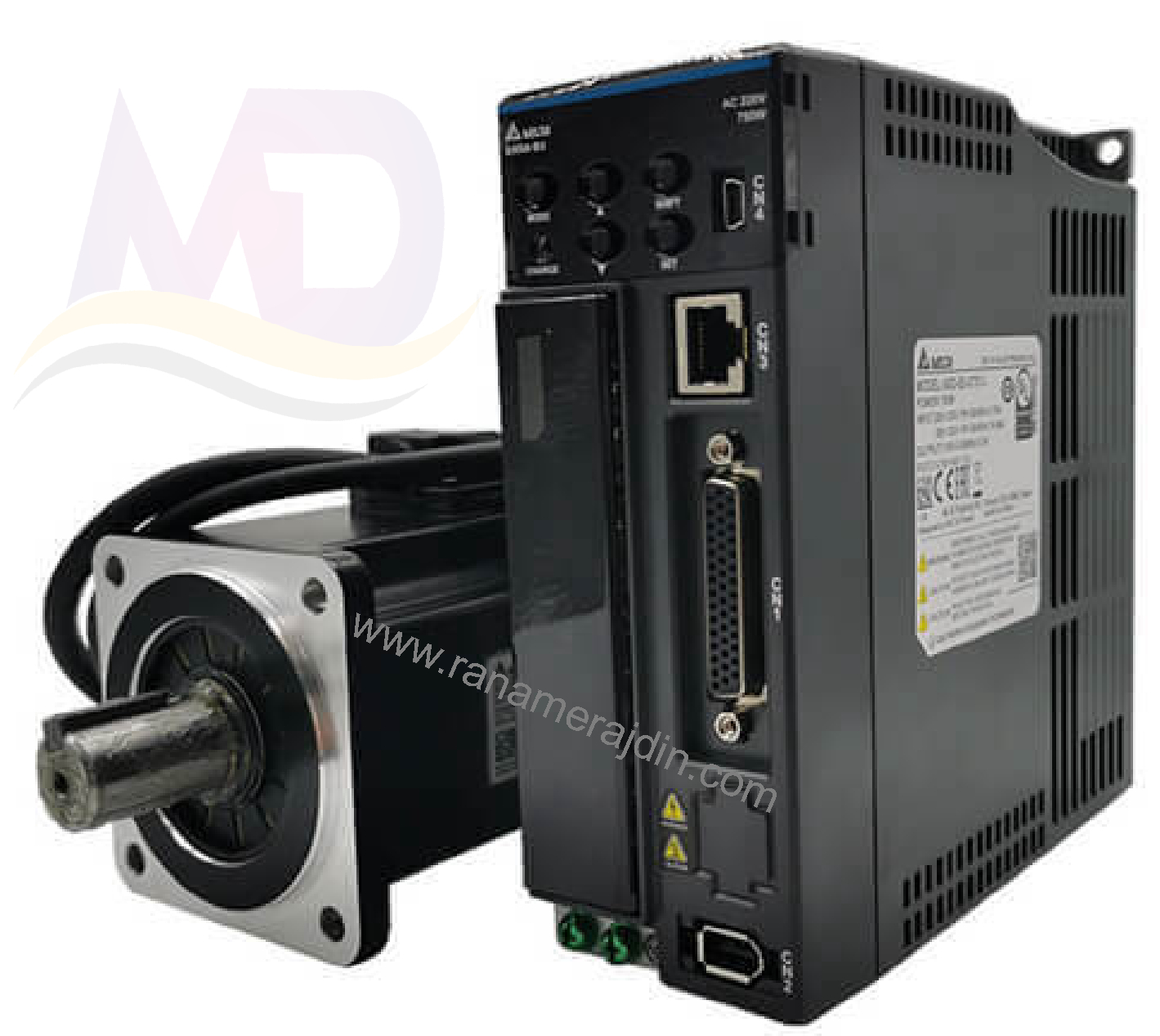

| Model Name | ASD-B3-0721-L |
| Series | B3 Servo Drive |
| Phase | 1/3 PH |
| Voltage | 220 VAC |
| Rated Output Power | 750 watts |
| Continuous Output Current | 5.1 Arms |
| Instant Max Output Current | 16.4 Arms |
| Model Type | PT Mode Pulse Input, PR Mode, RS-485, Analog Voltage Control |
SERIES DESCRIPTION

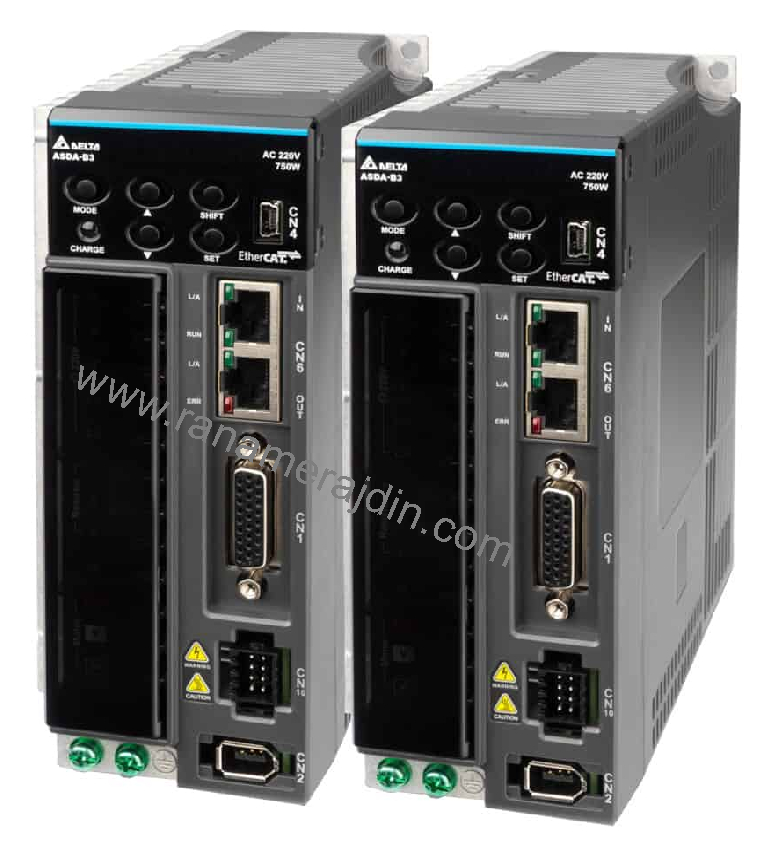

ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.
Features Include
- 3.1 kHz Bandwith
- 24-bit encoder
- 6000 r/min motor support
- Closed loop status control
- Software supporting vibration suppression, auto-tuning, graphical configuration
- DC Bus Sharing
- Smaller drive and motors compared to B2
